Small scale pectin gummy machine

Model No.: SGDQ80 Introduction: This machine is used to produce pectin gummy in small scale capacity. Machine use electrical or steam heating, servo control system, whole automatic process from material cooking to final products.

Small scale pectin gummy machine is an advanced and continuous machine for making pectin gummy by using starchless mould. The whole line consists of cooking system, depositor, cooling tunnel, conveyor, sugar or oil coating machine. It is suitable for small factory or the beginners to confectionery industry.Small scale pectin gummy machine For production of pectin gummy Production flowchart → Raw material mixing and cooking → Storage→ Add flavor, color and citric acid→ Depositing→ Cooling→ Demoulding→ Conveying→ drying→ packing→ Final product Step 1 Raw materials are automatic or manually weighed and put into cooker, boil to required temp and store in the storage tank.

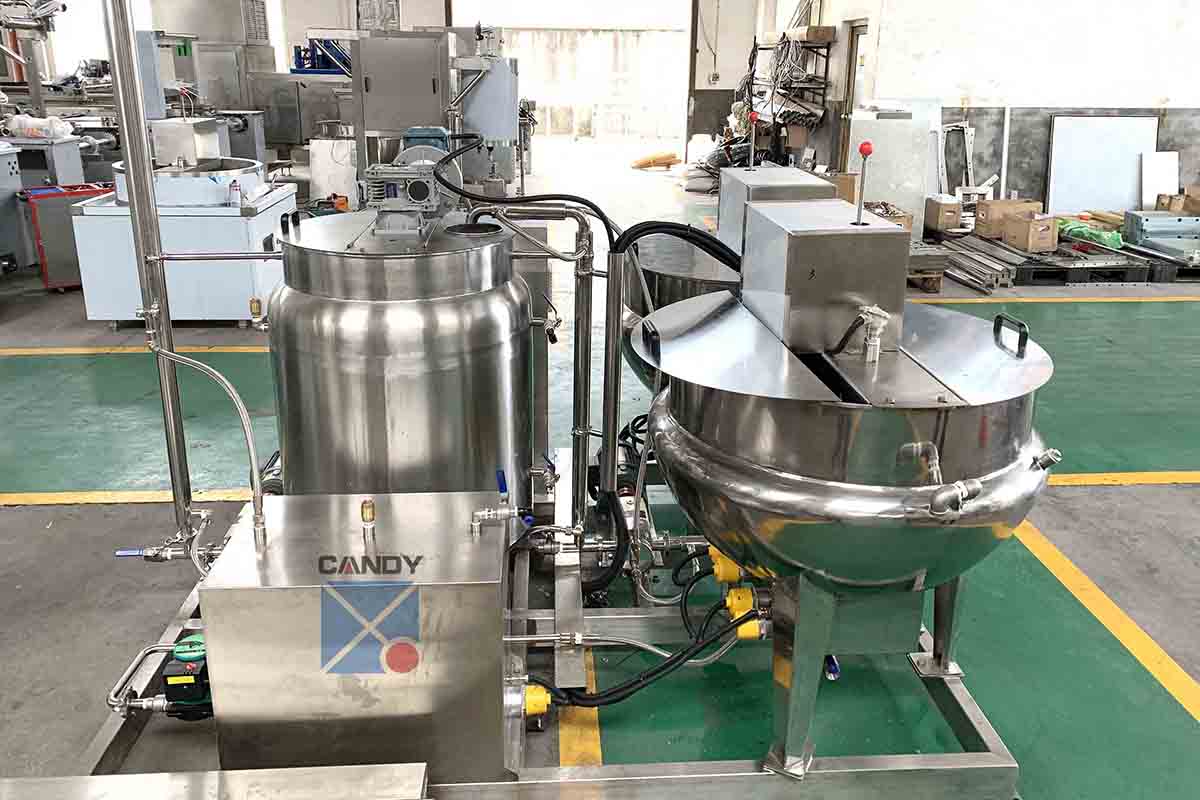

Step 2 Cooked material transfer to depositor, after mixing with flavor & color, flow into hopper for depositing into candy mould.

Step 3 Gummy stay in the mould and transferred into cooling tunnel, after around 10 mins cooling, under the pressure of demoulding plate, gummy drop onto the PVC/PU belt and transferred to do sugar coating or oil coating.

Tech Specification

Model	SGDQ80
Capacity	80kg/h
Candy Weight	as per the candy size
Depositing Speed	45 ～55n/min
Working Condition	Temperature：20～25℃；
Total power	30Kw/380V/220V
Total Length	8.5m
Gross Weight	2000kg

Step 4 Put gummy onto trays, keep each one separately to avoid sticking and send to drying room. Drying room should be equipped with air conditioner/heater and dehumidifier to keep suitable temp.and humidity. After drying, gummy can be transferred for packaging.

Application Production of different shaped pectin gummy.
