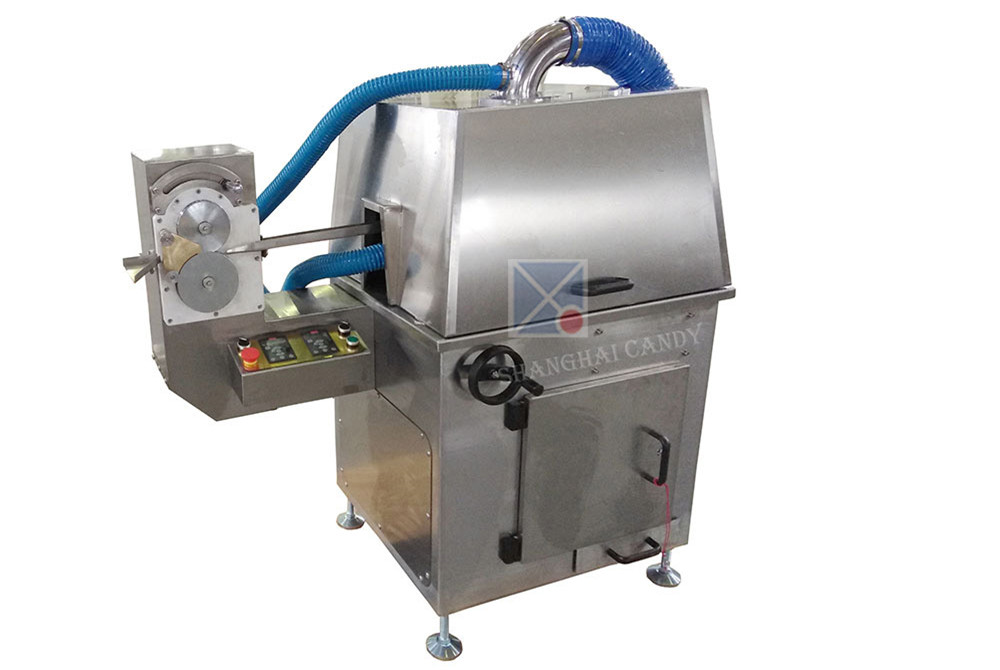

Die forming milk candy machine

Model No.: T400 Introduction: Die forming milk candy machine is a advanced plant for making different types of soft candy, such as milk soft candy, center-filled milk candy, center-filed toffee candy, eclairs etc. It was introduced and developed to meet the increasing demands of the consumers for the candies: tasty, functional, colorful, nutritional etc. This production line can reach word advanced level both in appearance and performance.

Products Details

Die forming milk candy line For production of die formed milk candy, center filled soft candy Production flowchart → Raw material dissolving→Storage→Vacuum cooking→Add color and flavor→Cooling→Rope forming or extruding→cooling → Forming→Final productStep 1 Raw materials are automatic or manually weighed and put into dissolving tank, boil to 110 degrees Celsius.Step 2 Boiled syrup mass pump into air inflation cooker or continuous cooker, heat and concentrated to 125 degrees Celsius.Step 3  Add flavor, color into syrup mass and it flow onto cooling belt.Die forming milk candy line Advantages *Automatic control for vacuum cooking and aeration mixing process; *An unique design of aeration mixing system guarantees a high quality product; *Synchronized control for central-filling,extruding and rope sizing; *Chain style die for different shapes of candy; *Steel cooling belt is optional for better cooling effect; *Pulling machine is optional for pulled (aerated) candy requirement.Application 1. Production of milk candy, center filled milk candy.Die forming milk candy line show Die forming milk candy line12Step 4 After cooling, syrup mass is transferred into extruder, rope sizer, meanwhile can add jam filling inside. After rope getting smaller and smaller, it enter into forming mould, candy formed and transferred for cooling.Tech Specs

Model

T400

Standard Capacity

300-400kg/h

Candy Weight

Shell:8g(Max); Central filling: 2g(Max)

Rated Output Speed

1200pcs/min

Electric Power

380V/60KW

Steam Requirement

Steam Pressure:0.2-0.6MPa; Consumption:250~400kg/h

Working Condition

Room Temperature: 20~25℃; Humidity: 55%

Total Length

16m

Gross Weight

5000kg
